Features

●Target workpiece: Cardboard boxes, etc.

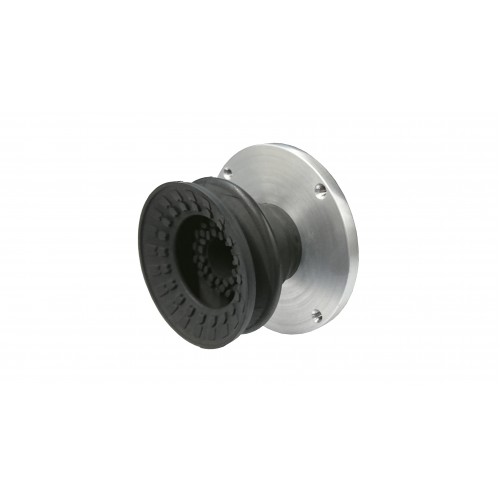

●Suction pad for air ejector (ESVP10-A)

Specifications

●Type: Suction pad for air ejector (ESVP10-A)

●Compatible fitting: Air ejector (ESVP10-A)

●Pad type: Bellows pad

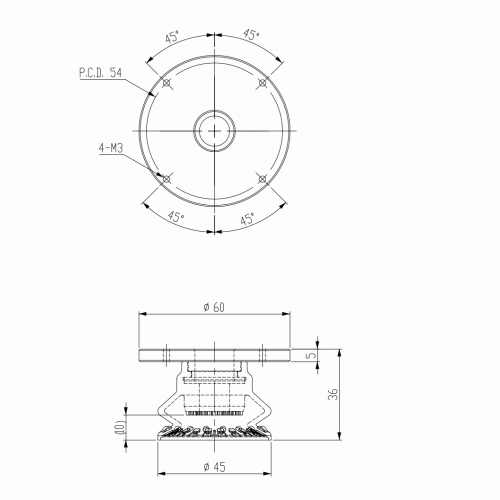

●Pad outer diameter (mm): φ45

●Internal volume (mm³): 14

●Max. vertical lifting force (kg): 2 (for non-leaking workpieces where vacuum pressure reaches -79 kPa or lower during suction)

●Mounting taps (mm): 4-M3

●Mounting pitch (mm): P.C.D. 54 (equally spaced at 90°)

●Color: Black

●Height × Outer diameter (mm): 35 × φ60

●Weight (g): 58 Material

●NBR
