★Product video available

Features

●Target workpiece: Thin cardboard boxes, etc.

●Suction pad for Air Ejector (ESVP10-A)

Specifications

●Type: Suction pad for Air Ejector (ESVP10-A)

●Compatible fitting: Air Ejector (ESVP10-A)

●Pad type: Sponge

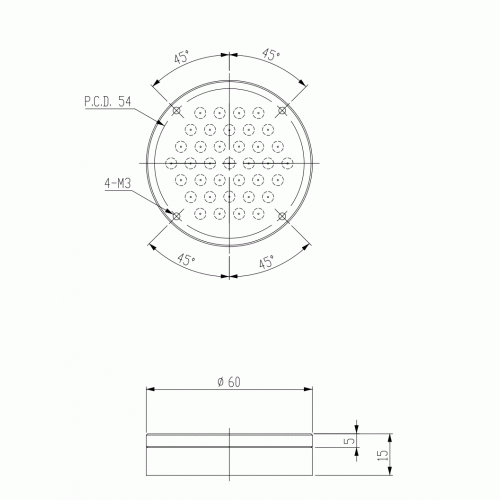

●Outer diameter (mm): φ60

●Max. vertical lifting force (kg): 2 (for non-leaking workpieces where vacuum pressure reaches -79 kPa or lower during suction)

●Mounting taps (mm): 4-M3

●Mounting pitch (mm): P.C.D. 54 (equally spaced at 90°)

●Color: Black

●Height x Outer diameter (mm): 15 x φ60

●Weight (g): 42

Material

●EPDM sponge

【 Product video here ↓↓↓ 】 (Link to YouTube)

https://youtu.be/WwaMdmIFwJM?si=m7v-D8dHEXM8Qw6-
