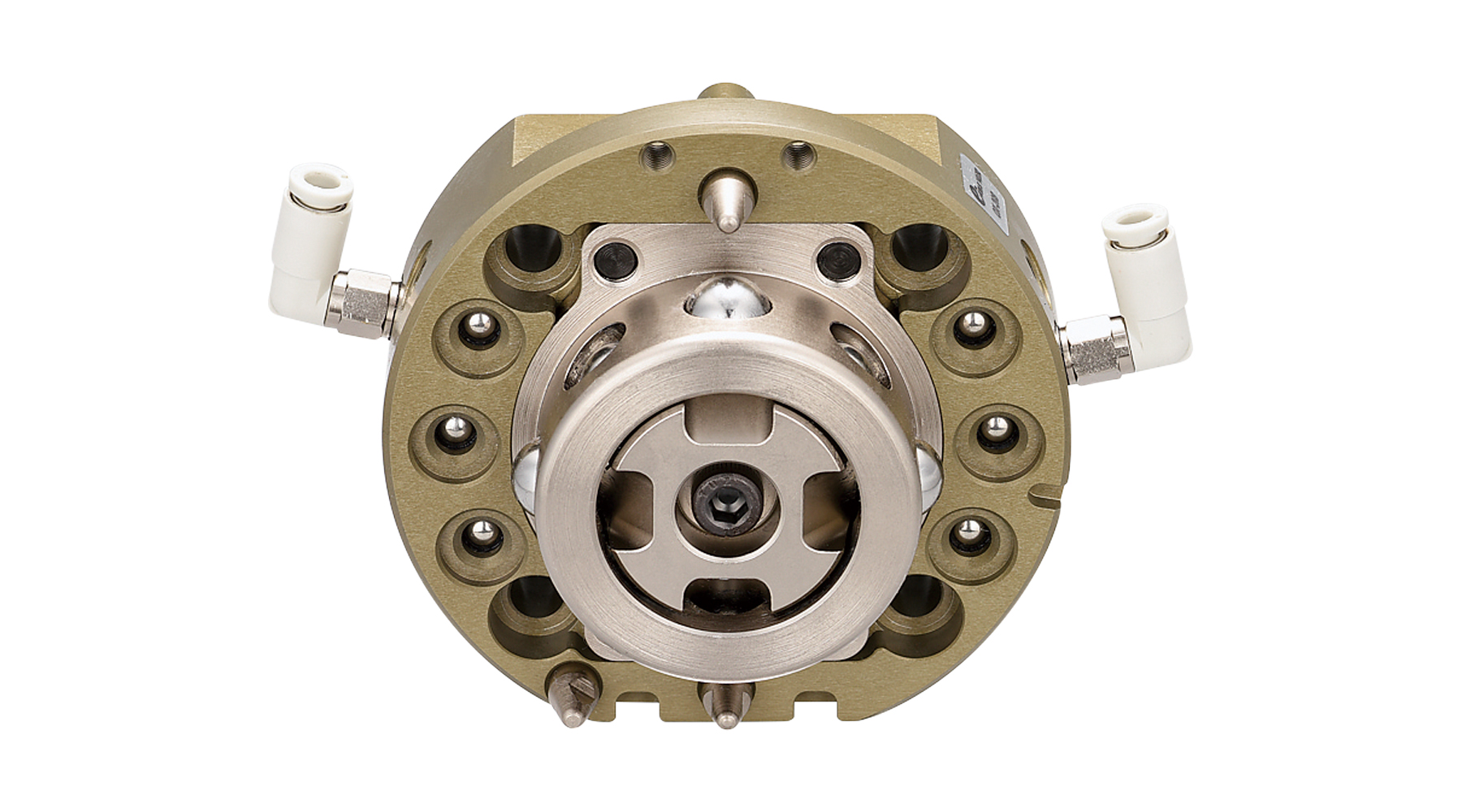

Features

● Equipped with a proprietary detachment mechanism (Patent No. 4126074).

● Built-in fail-safe mechanism.

● Built-in air check valve.

● Air options can be added.

●Piston operation monitoring sensor mountable (Optional)

Specifications　

●Mounting position: Robot side

●Load Capacity (kg): Up to 20kg

●Repeatability (mm): ±0.02 (based on company measurements)

●Thickness when connected (mm): 47

●Operating air pressure: 0.5–0.7 MPa

●Pull-in force (N): 2200 (at 0.5 MPa operating pressure)

●Push-out force (N): 420 (at 0.5 MPa operating pressure)

●Allowable torsional moment (Nm): 20.0

●Allowable bending moment (Nm): 28.0

●Body material: Super Duralumin

●Material of detachable part: Steel

●Clamp/Unclamp mechanism: Double-acting type

●Clamp/Unclamp piping (mm): Outer diameter ф4

●Piping connection (mm): 6-M5

●Mounting screws (mm): 4-M6

●Mounting pitch (mm): P.C.D. 63 (equally spaced at 90°)

●Positioning pin holes (mm): 2-ф6

●Positioning pin hole pitch (mm): 31.5 (from center)

●Positioning boss (mm): ф25 H=3

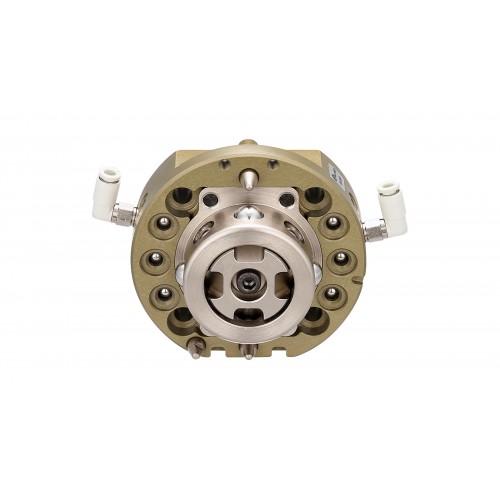

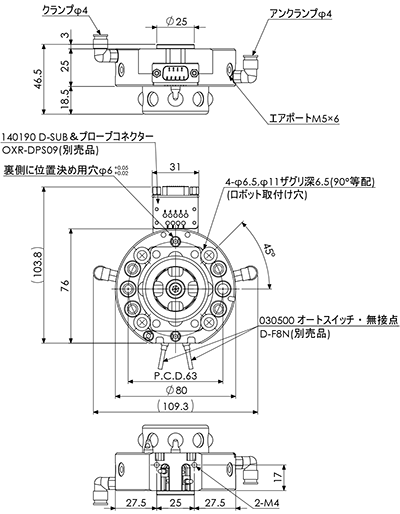

● Overall length x Width x Height (mm): (109) x (46.5) x (76)
