Features

● Equipped with a proprietary detachment mechanism (Patent No. 4126074).

● Air options can be added.

Specifications　

●Mounting position: Tool side

●Load Capacity (kg): Up to 20kg

●Repeatability (mm): ±0.02 (based on company measurements)

●Thickness when connected (mm): 47

●Operating air pressure: 0.5–0.7 MPa

●Body material: Super Duralumin

●Material of detachable part: Steel

●Piping connection (mm): 6-M5

●Mounting screws (mm): 4-M6

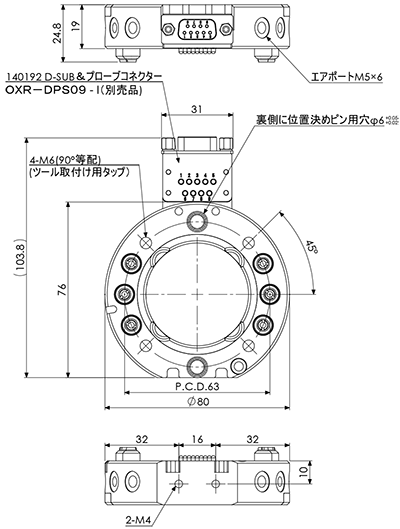

●Mounting pitch (mm): P.C.D. 63 (equally spaced at 90°)

●Positioning pin holes (mm): 2-ф6

●Positioning pin hole pitch (mm): 63 (from center)

● Overall length x Width x Height (mm): (80)×(25)×(76)
