Specifications

● Equipped with a proprietary detachment mechanism (Patent No. 4126074).

● Mounting position: Tool side

● Load capacity (kg): Up to 230

● Operating air pressure: 0.5–0.7 MPa

● Piping connection (mm): 10-Rc 3/8

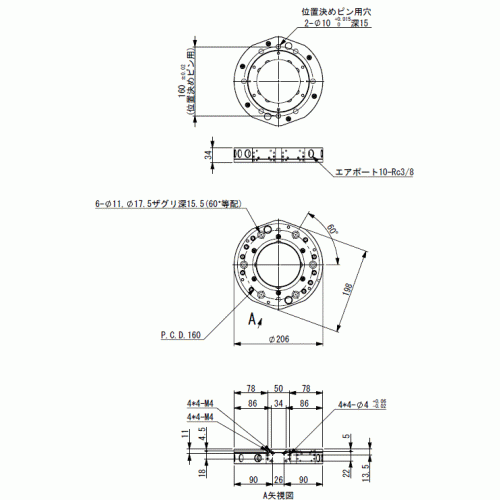

● Mounting pitch (mm): P.C.D. 160 (equally spaced at 60°)

● Positioning pin holes (mm): 2-φ10

● Body material: Super Duralumin

● Detachable part material: Steel
