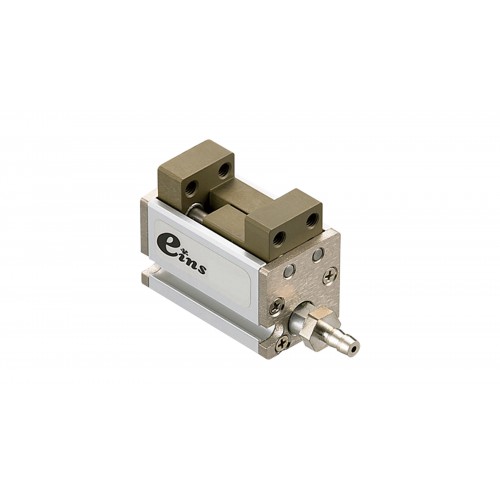

Replacement for Code No. 072172 (Successor model to HC-5S)

Features:

● Compact body with low overall height; space-saving design.

● Auto-switches can be installed for operation-limit or return-limit detection (intermediate position detection not supported).

Specifications:

● Construction: Single-acting type

● Operating air pressure (MPa): 0.3–0.6

● Gripping force (N): 6 (at 0.4 MPa operating pressure)

● Piping fittings (BF-5-M3 x 2) included

● Piping (mm): Inner diameter φ2–2.7 (varies by material)

● Cylinder bore (mm): 7

● Stroke (mm): 5

● Body mounting screws (bottom): 2-M3 (4 mm depth)

● Body mounting pitch (bottom) (mm): 17 x 6 (from center)

● Body mounting screws (side): 2-M3 (4 mm depth)

● Body mounting pitch (side) (mm): 10 x 5 (from bottom surface)

● Gripper finger mounting screws: 2 x 2-M3

● Gripper finger mounting pitch (mm): 8

● Overall length x width x height (mm): 32 x 18 x 25.5
