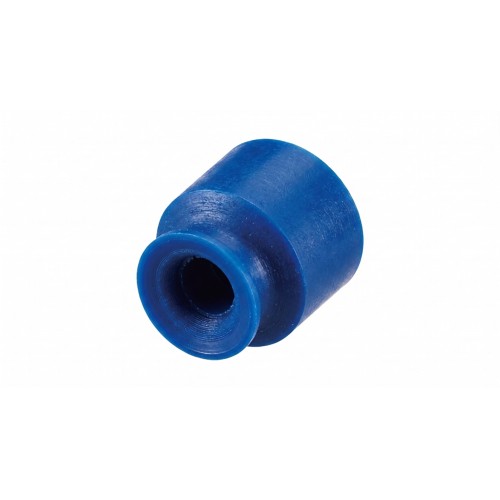

<Micro Series>

Model change from Code No. 210789 ( VAPH-4M)

Features:

● FDA and BfR compliant; suitable for use with food products.

● Can be used in the same way as existing silicone (brown) pads.

● Target Workpieces: Smooth-surfaced, non-deforming workpieces.

● Excellent heat and alcohol resistance.

● Superior fit; flexibly conforms to workpiece shapes and orientations.

● Easy installation using suction fittings.

Specifications:

● Series: Micro Series

● Compatible Fittings: Micro suction fittings (VFILB-M, VFILB-MSH series)

● Pad Type: Flat pad

● Embedded type

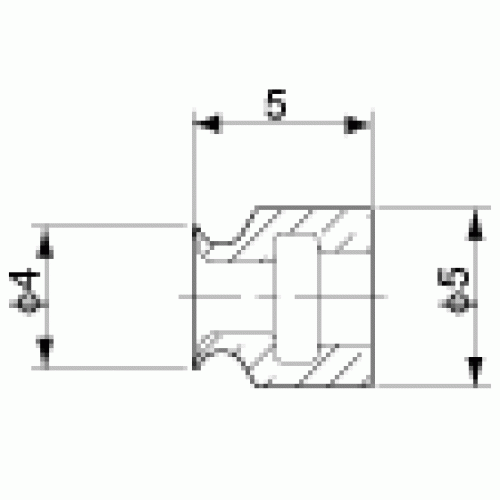

● Pad Outer Diameter: φ4 mm

● Color: Blue

● Height (mm): 5

Materials:

● Reinforced silicone

● Heat Resistance (°C): -60 to 250
