Features

● Compatible Workpieces: Workpieces with uneven surfaces or holes

● Non-contact operation allows for transport without leaving suction marks or damaging the workpiece.

● Capable of gripping workpieces that cannot be handled by standard suction pads due to air leakage.

Specifications

● Type: Non-contact pad

● Operating Air Pressure (MPa): 0.15–0.5

● Lifting Force (N): 15 (Performance at 0.5 MPa supply pressure; based on gripping a flat object without holes)

● Compressed Air Supply Port: Side (M5)

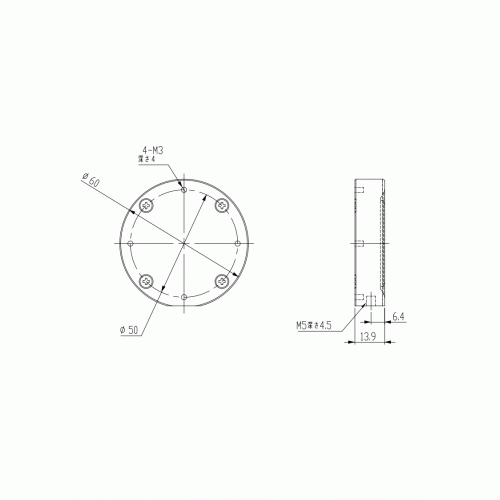

● Pad Outer Diameter (mm): φ60

● Height (mm): 13.9

● Mounting Pitch (mm): φ50 (equally spaced at 90°)

● Mounting Bolts (mm): 4-M3

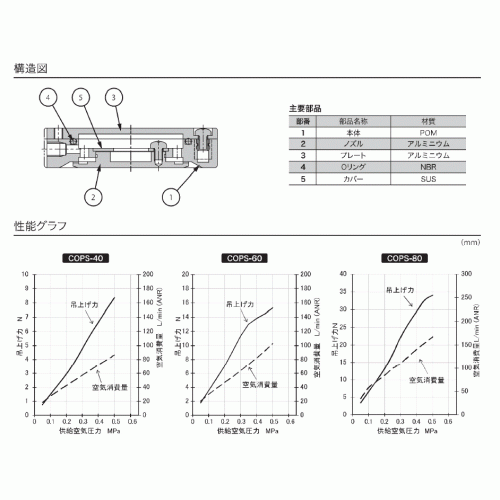

Materials

● Body: POM

● Nozzle: Aluminum
