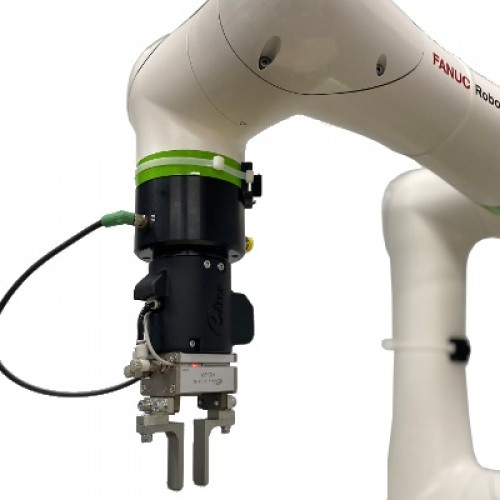

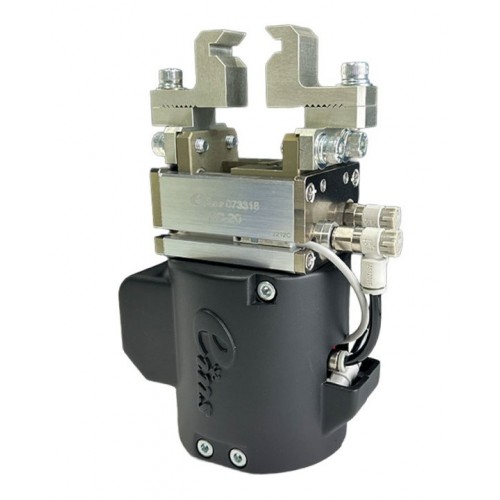

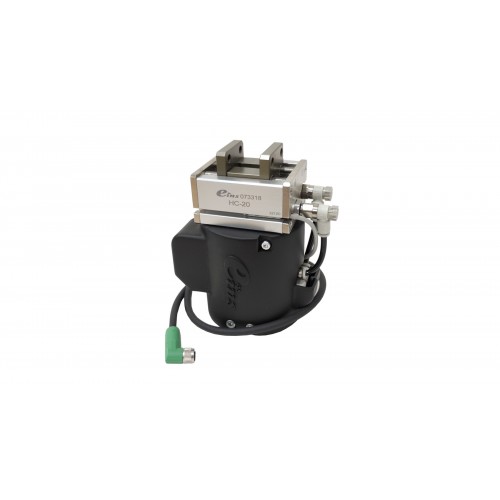

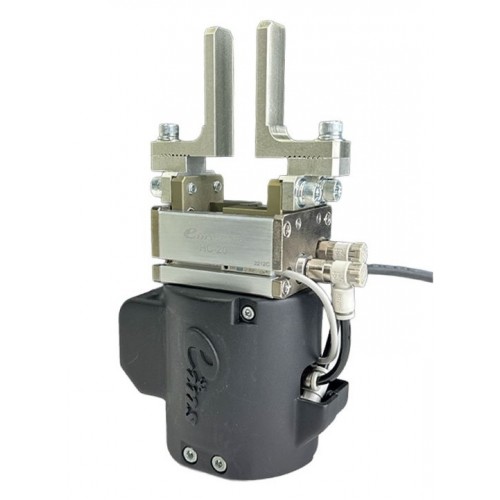

This is a plug-in hand for collaborative robots.

Please download the plug-in software for the eins hand from the FANUC website

and install it on your collaborative robot before use.

*Please purchase the grippers separately.

Specifications

● Working fluid: Air

● Operating air pressure (MPa): 0.3–0.6

● Operation type: Double-acting

● Stroke (mm): 20

● Cylinder diameter (mm): Φ15

● Gripping force (at 0.4 MPa): 28 N
