Features ● Suction pad that complies with FDA and BfR and can be used on food.

                   ●Can be used in the same way as existing silicone (brown) pads.

                   ●The sponge is not FDA/BfR compliant.

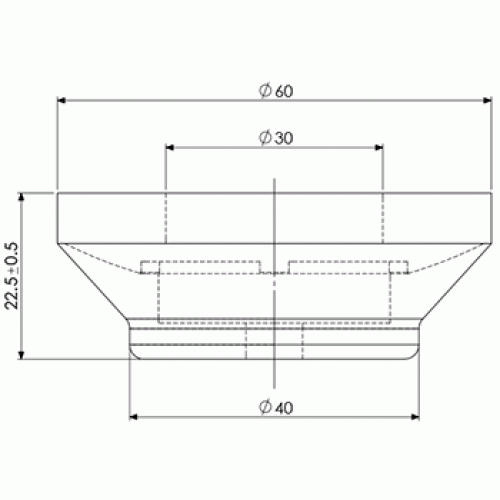

                   ● As it is made of sponge material, the finished dimensions may differ from the drawing.

                   ●Applicable workpiece: Workpiece with uneven suction surface (for workpiece with large unevenness)

                   ● It has excellent weather resistance, cold resistance, and chemical resistance..

                   ● Excellent fit, flexibly follows the shape and posture of the workpiece.

                   ● Easy installation with suction stems.

Specifications:

                  ● Type: Large series

                  ●Suction stems apply: Suction stems Large: VFI-L、VFIL-H series

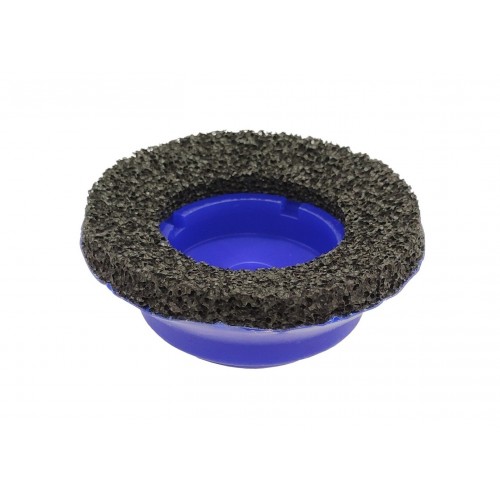

                  ● Suction cup type: Flat pad with sponge Recessed type

                  ● Pad outer diameter: ф60

                  ● Color: Blue (suction pad) Black (sponge)

                  ● Height (mm): 22.5

                  ●Material: Silicone (FDA and BfR compliant)

                  ● Sponge material: Ethylene Propylene Rubber (Not FDA/BfR Compliant)

                  ●Heat resistance (℃): 80

                  ●Hardness: Shore A 50±5 (suction pad)
