Features
● Target workpiece: Workpieces with uneven surfaces
● Excellent heat and alcohol resistance.
● Superior cushioning allows it to flexibly conform to the workpiece's shape and orientation.
● Requires the dedicated external fitting VFILA-PHB-1/8.
● Can also be used as the outer pad in a "pad-in-pad" configuration. Specifications
● Type: Large Series
● Compatible fittings: Large suction fittings (VFI-L, VFIL-H series)
● Pad type: Bellows pad
● Embedded type

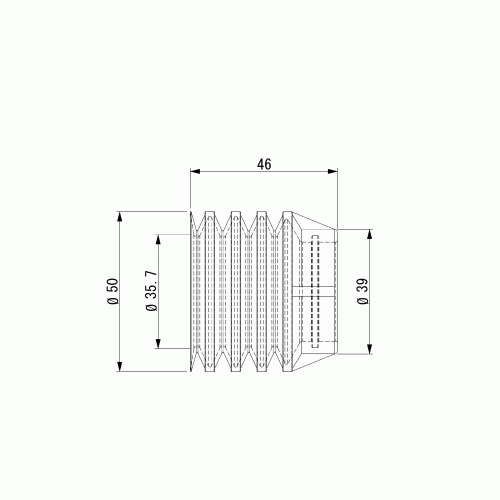

● Pad outer diameter: φ50
● Color: White
● Height (mm): 46
Material
● Reinforced silicone
● Heat resistance temperature (°C): -60 to 250
● Hardness: Shore A 55±5
Tags: New!

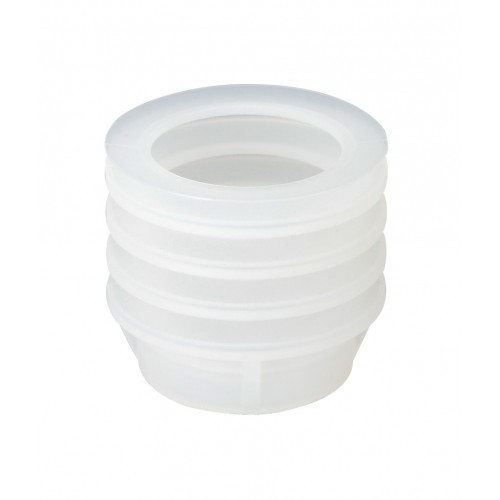

BELLOWS CUP(MULTI-STAGE/SILICON)
- Product Code: 042073
- Model: EPLG-50-S5
- Availability: In Stock
Available Options
Related Products
SUCTION STEM NON-ROTATE 1/8
Product Code: 211049
Model: VFILB2-SH 1/8
*Switched from №210987 VFILB1-SH 1/8.BF-5 of the metal joint was changed to BF-6...
SUCTION STEM NON-ROTATE 1/8
Product Code: 211050
Model: VFILB2-SH 1/8-P12
*Switched from №210820 VFILB-SH 1/8-P12.BF-5(M4) of the metal joint was changed to BF-6(M5)...
SUCTION STEM NON-ROTATE/SMALL
Product Code: 211051
Model: VFILB2-SH 1/8-20
*Switched from №210853 VFILB-SH 1/8-20.BF-5(M4) of the metal joint was changed to BF-6(M5)...
SUCTION STEM NON-ROTATE/SMALL
Product Code: 211052
Model: VFILB2-SH 1/8-20-P12
*Switched from №210854 VFILB-SH 1/8-20-P12.BF-5(M4) of the metal joint was changed to BF-6(M5)...
INNER-STEM ATTACHMENT HEAD FOR PT1/8 D
Product Code: 211117
Model: VFILA-PHD-1/8
This is a mounting bracket for multi-stage bellows pads. Compatible pad: EPLG-50-S5..
