Features
● Target Workpiece: The star-shaped lip design flexibly conforms to soft or bag-shaped workpieces.
● Offers excellent heat and alcohol resistance.
● Requires the dedicated external fitting VFILA-PHA-1/8.
Specifications
● Type: Large Series
● Compatible Fittings: Large-size suction fittings (VFI-L, VFIL-H series)
● Pad Type: Bellows pad
● Embedded type
● Pad Outer Diameter: φ24.7 mm
● Color: White
● Height (mm): 40
Material
● Silicone rubber
● Hardness: Shore A 40 ± 5

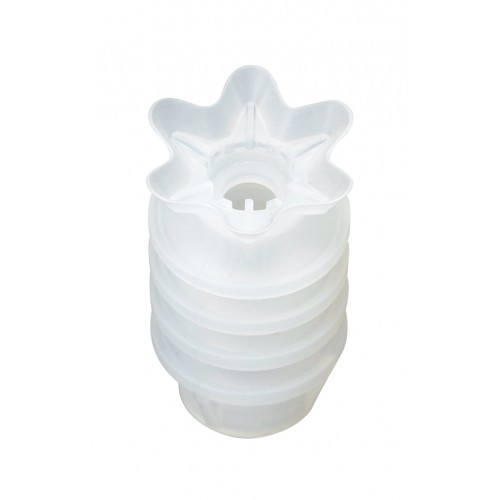

BELLOWS CUP(STAR-SHAPED FOR POUCH FILM)
- Product Code: 042074
- Model: EPMG-24L-S4
- Weight: 5.00g
- Availability: In Stock
Available Options
