Features

● Target Workpiece: The star-shaped lip design flexibly conforms to soft or bag-shaped workpieces.

● Offers excellent heat and alcohol resistance.

● Requires the dedicated external fitting VFILA-PHB-1/8.

Specifications

● Type: Large Series

● Compatible Fittings: Large-size suction fittings (VFI-L, VFIL-H series)

● Pad Type: Bellows pad

● Embedded type

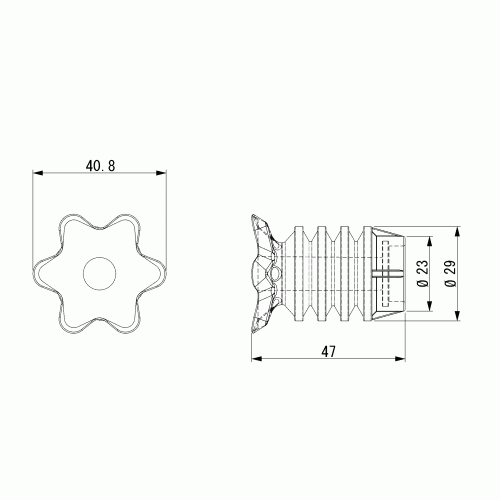

● Pad Outer Diameter: ф40.8 mm

● Color: White

● Height (mm): 47

Material

● Silicone rubber

● Hardness: Shore A 40 ± 5


Tags: NEW!

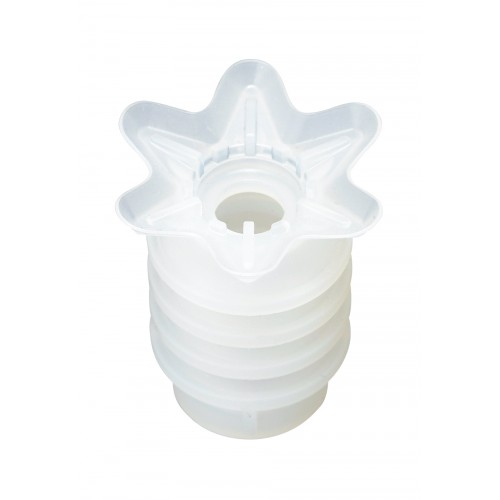

BELLOWS CUP(STAR-SHAPED FOR POUCH FILM)

  • Product Code: 042075
  • Model: EPMG-40L-S4
  • Weight: 10.00g
  • Availability: In Stock
