★★★Requires dedicated head ETN-PS-2A-M5★★★
Features
●Target workpiece: Workpieces with inclined gripping surfaces
●Excellent heat and alcohol resistance.
●Provides an outstanding fit, flexibly conforming to the workpiece's shape and orientation.
●Uses silicone rubber compliant with FDA (U.S. Food and Drug Administration) standards.

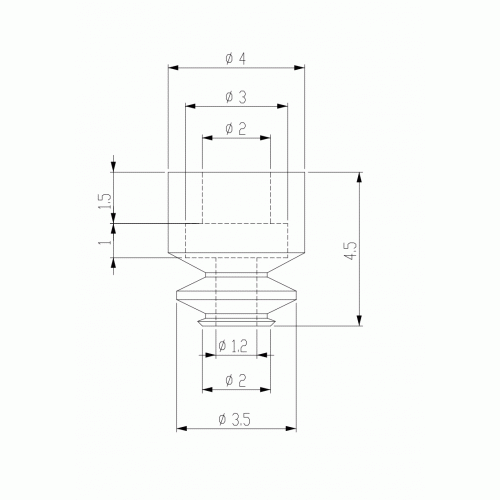

Specifications
●Series: Small Series
●Compatible fittings: Small suction fittings (VFILB2-SH series)
●Pad type: Bellows pad (2-stage)
●Pad outer diameter: φ2 mm
●Color: Translucent white
●Height (mm): 4.5
Material
●Silicone rubber
●Hardness: Shore A 55
●Operating temperature (°C): -60 to 250
VACUUM PAD(SILICON)
- Product Code: 042095
- Model: EPJG-2-S
- Weight: 0.10g
- Availability: In Stock
