★★★Requires dedicated head ETN-PS-10-M5★★★
Features
●Target workpiece: Workpieces with inclined gripping surfaces
●Effective for gripping items such as glass products where leaving suction marks must be avoided.
●Offers an excellent fit, flexibly conforming to the workpiece's shape and orientation.
●Requires dedicated head ETN-PS-10-M5. Specifications
●Series: Small Series
●Compatible fittings: Small suction fittings (VFILB2-SH series)

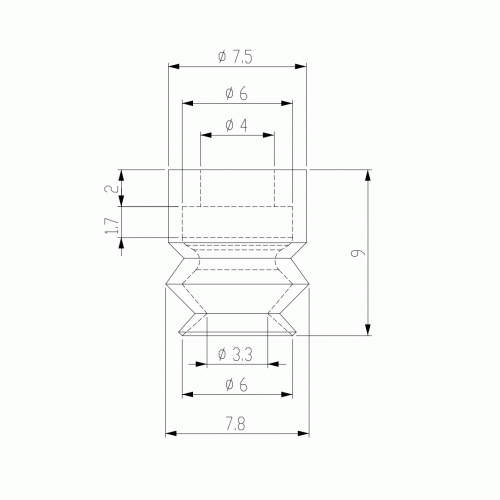

●Pad type: Bellows pad (2-stage)
●Pad outer diameter: φ6 mm
●Color: Black with white dots
●Height (mm): 9
Material
●Mark-preventing fluoro-rubber
●Hardness: Shore A 70
●Operating temperature (°C): -10 to 230
VACUUM PAD(MARK-FREE)
- Product Code: 042099
- Model: EPJG-6-F-RA
- Weight: 0.20g
- Availability: In Stock
