★★★Requires dedicated head ETN-PS-10-M5★★★

Features

●Target workpiece: Workpieces with inclined gripping surfaces

●Effective for gripping items such as glass products where leaving suction marks must be avoided.

●Offers an excellent fit, flexibly conforming to the workpiece's shape and orientation.

●Requires dedicated head ETN-PS-10-M5. Specifications

●Series: Small Series

●Compatible fittings: Small suction fittings (VFILB2-SH series)

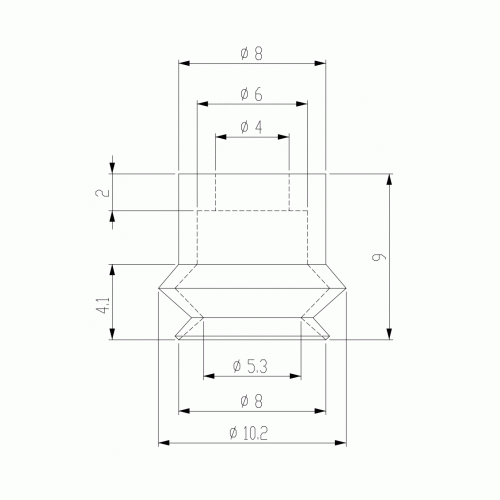

●Pad type: Bellows pad (2-stage)

●Pad outer diameter: φ8 mm

●Color: Black with white dots

●Height (mm): 9

Material

●Mark-preventing fluoro-rubber

●Hardness: Shore A 70

●Operating temperature (°C): -10 to 230
