★★★Requires dedicated head ETN-PS-2A-M5★★★

Features

●Target workpiece: Workpieces with inclined gripping surfaces

●Excellent heat and alcohol resistance.

●Provides an outstanding fit, flexibly conforming to the workpiece's shape and orientation.

●Uses silicone rubber compliant with FDA (U.S. Food and Drug Administration) standards.

Specifications

●Series: Small Series

●Compatible fittings: Small suction fittings – VFILB2-SH series (use by replacing the head)

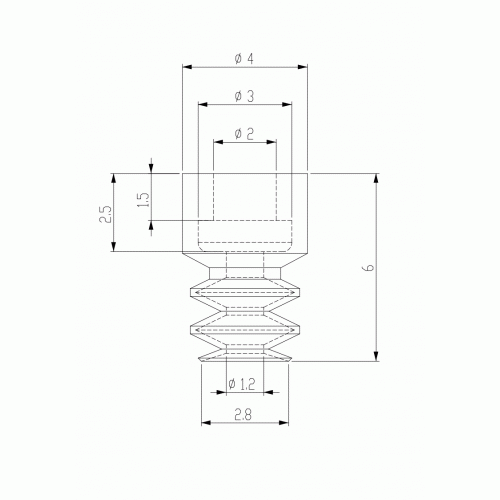

●Pad type: Bellows pad (3-stage)

●Embedded type

●Pad outer diameter: φ2.8

●Color: Translucent white

●Height (mm): 6

Material

●Silicone rubber

●Hardness: Shore A 55

●Operating temperature (°C): -60 to 250
