★★★Requires dedicated head VFILA-PHA-1/8★★★

Features

●Target workpiece: Workpieces with uneven surfaces

●Excellent heat and alcohol resistance.

●Provides an outstanding fit, flexibly conforming to the workpiece's shape and orientation.

●Uses silicone rubber compliant with FDA (U.S. Food and Drug Administration) standards.

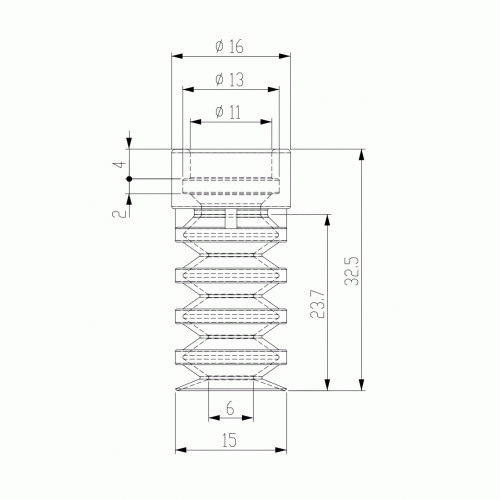

Specifications

●Type: Large Series

●Compatible fittings: Large suction fittings (VFI-L, VFIL-H series)

●Pad type: Bellows pad (multi-stage)

●Embedded type

●Pad outer diameter: φ14.5

●Color: Translucent white

●Height (mm): 32.5

Material

●Silicone rubber

●Hardness: Shore A 55

●Operating temperature (°C): -60 to 250
