★★★Requires dedicated head VFILA-PHA-1/8★★★

Features

●Target Workpiece: Ideal for pouch films

●Excellent surface adaptability and gripping power

●Uses silicone rubber compliant with FDA (U.S. Food and Drug Administration) standards.

Specifications

●Type: Large Series

●Compatible Fittings: Large suction fittings (VFI-L, VFIL-H series)

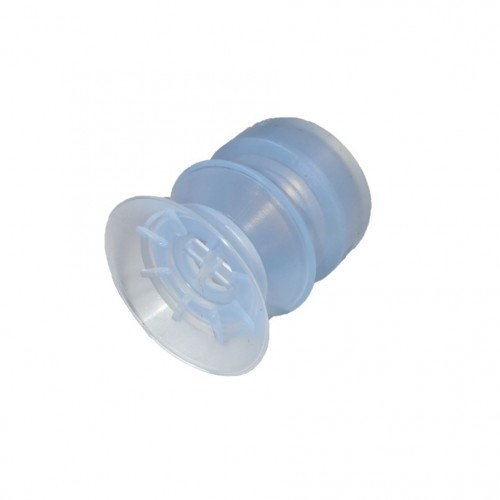

●Pad Type: Bellows pad (2-stage)

●Embedded type

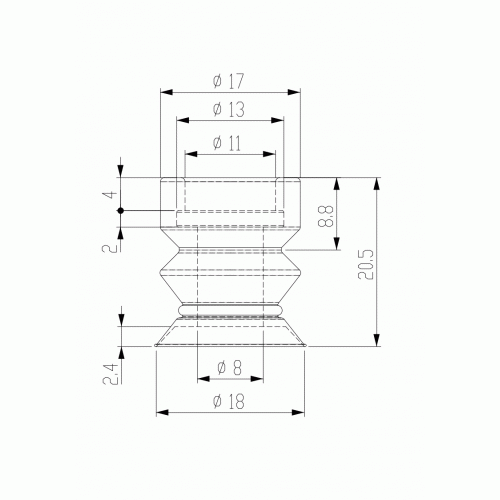

●Pad Outer Diameter: φ18

●Color: Light blue

●Height (mm): 20.5

Material

●Silicone rubber

●Hardness: Shore A 40

●Operating Temperature (°C): -60 to 250
