★★★Requires dedicated head VFILA-PHA-1/8★★★
Features
●Target Workpiece: Ideal for pouch films
●Excellent surface adaptability and gripping power
●Uses silicone rubber compliant with FDA (U.S. Food and Drug Administration) standards.
Specifications
●Type: Large Series
●Compatible Fittings: Large suction fittings (VFI-L, VFIL-H series)
●Pad Type: Bellows pad (2-stage)
●Embedded type

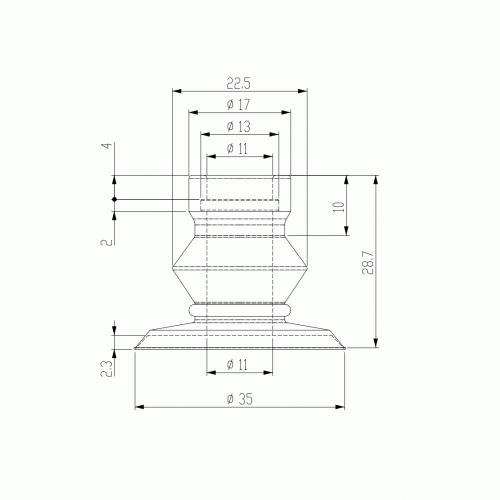

●Pad Outer Diameter: φ35
●Color: Light blue
●Height (mm): 29
Material
●Silicone rubber
●Hardness: Shore A 40
●Operating Temperature (°C): -60 to 250
Tags: NEW!

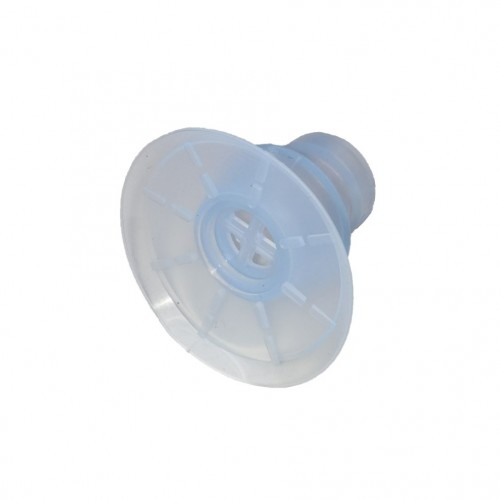

BELLOWS CUP(FOR POUCH FILM/2-STAGE)
- Product Code: 042106
- Model: EPNG-134B-S4
- Availability: In Stock
