★★★Dedicated head VFILA-PHB-1/8 is required★★★
Features
●Target Workpieces: The star-shaped lip design flexibly conforms to soft or bag-shaped workpieces.
●Excellent heat and alcohol resistance.
●Uses silicone rubber compliant with FDA (U.S. Food and Drug Administration) standards.
Specifications
●Series: Large Series
●Compatible Fittings: Large suction fittings (VFI-L, VFIL-H series)
●Pad Type: Flat pad
●Embedded type

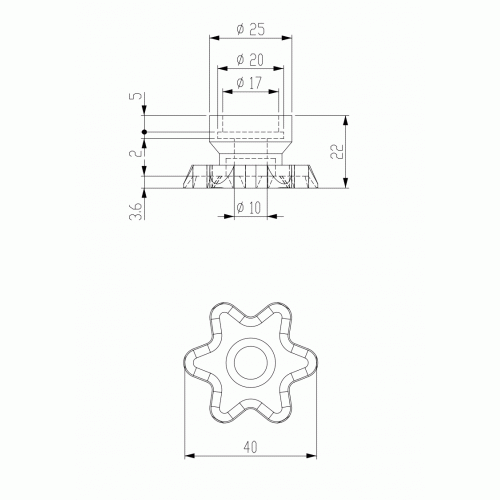

●Pad Outer Diameter: ф40
●Color: Light blue
●Height (mm): 22
Material
●Silicone rubber
●Hardness: Shore A 40±5
●Operating Temperature (°C): -60 to 250
Tags: NEW!

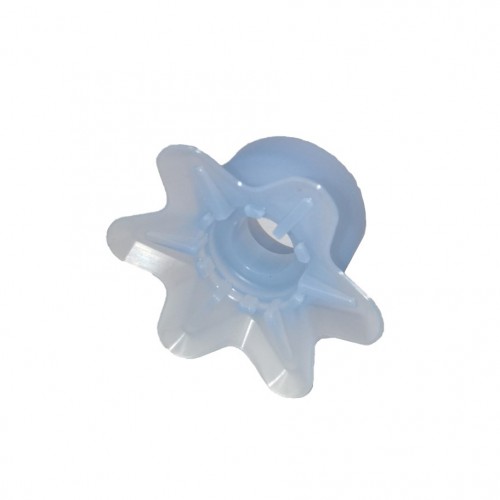

SUCTION CUP(STAR-SHAPED FLAT FOR POUCH)
- Product Code: 042109
- Model: EPMG-40S-S4
- Weight: 5.60g
- Availability: In Stock
